ZTerminal

Updated December 7, 1999

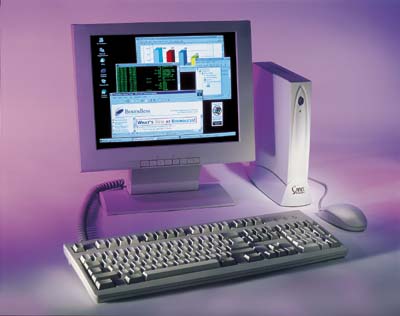

Based on the Boundless Capio 320 Windows Based Terminal, ZTerminal is an excellent way to connect users to both host-based applications running on AMOS and Unix computers and to Windows applications running on Windows NT Terminal Server Edition. ZTerminal costs about the same as a dumb terminal, yet has the processing capability needed for the Windows world without the maintenance costs of a PC.

To learn more about ZTerminal, please contact one of our ZTERM distributors.

Hardware Specifications

CPU	180 MHz Cyrix MediaGXi™ Processor
Memory	16 MB EDO DRAM (2 SIMM sockets, factory expandable to 128 MB) 256 KB Phoenix BIOS with RomPilot™ 8 MB Flash Memory (72 MB Maximum)
Display	Color VGA/SVGA compatible 75Hz refresh rate for flicker-free viewing 9" - 21" monitor support 1024 x 768 maximum selectable resolution 16 or 256 colors, 262K color palette
Input	PC 101-key (US/UK English) or PC 102-key (International) Mini-DIN connector Euro Currency Symbol Support Mouse Port - PS/2 mini-DIN connector
Network	10BaseT Ethernet standard RJ-45 connector Optional 10/100BaseT
Optional Serial/Parallel Card	Two RS-232 Serial Ports with DB-9 male connectors One Bi-directional Centronics compatible Parallel Port with DB-25 female connector
Physical Specifications	Height: 1.75" 4.45 cm Width: 8.75" 22.23 cm Depth: 9.75" 24.77 cm Weight: 4.5lbs. 2.04 kg
Power Requirements	Internal power supply AC 90-264 VAC 47-63 Hz 1.0 A max AC input current Max AC input power: 25 W
Agency Certifications	UL, UL1950 FCC Class A EPA Energy Star cUL, CSA-C22.2, No. 950-M89 CE Mark TUV-GS, EN 60950 EN 55022/CISPR 22 EN 50082-1:1997

Software Specifications

Operating System	Microsoft Windows CE 2.11
Windows Connectivity	Microsoft RDP Citrix ICA
Host Connectivity	ZTERM for Windows CE 2.0
Terminal Emulations	Alpha Micro AM62A Alpha Micro AM62C ANSI CY350 Wyse 350 Wyse 50 VT-100
Host Protocols	Serial, Serial via Modem, Telnet, SSL Telnet, LPD/LPD for printing
Printer Support	PCL 3 Laser and Inkjet, Dot Matrix.
